Trentham Long House / MRTN Architects

Project: Trentham Long House
Architects: MRTN Architects
Location: Melbourne, Australia
Area: 259 m2
Year 2016
Photographer: Anthony Basheer

Conceived as a collection of contemporary farm buildings gathered under one expansive gable roof, the house’s form is immediately provocative of the traditional farming structures that once inhabited the local area. This elegant architectural response places the old machinery shed (garage), drive through loading zone, and main farmhouse (complete with a central farmhouse kitchen and wood burning stove) in one singular structure and deftly satisfies the three distinct requirements of the brief in one swift, effortless movement.

Trentham Long House / MRTN Architects

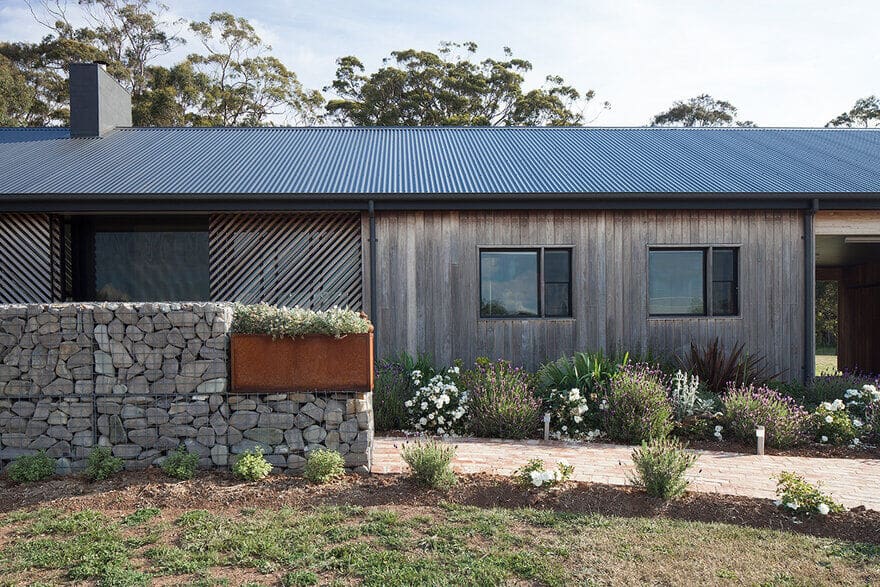

The building’s muted material palette subtly and effectively reflects the surrounding environment, echoing buildings of the past. The spotted gum exterior cladding is left to naturally patina, relying on its innate aptitude to develop character and camouflage over time.

Trentham Long House / MRTN Architects

In line with the project’s humble architectural intent, the building plan is reassuringly simple. It’s elongated; gable-roofed structure is neatly divided into parts according to the daily patterns and needs prescribed by a low-tech, country life.

Trentham Long House / MRTN Architects

The Trentham Long house is designed to fit around the lifestyle choices associated with living in this location and environment at this particular stage of their lives. The owners are not extravagant or wasteful people, they live with a careful intent behind all they do and their family is very important to them. The house is largely self sufficient, heating costs are low, cooling costs are non-existent and the extended family can be accommodated at all times.

kitchen, MRTN Architects

This Great Dividing Range, once gold mining town is now a quiet country escape whose inhabitants relish its crisp country air and quiet streets. Surrounded to the north, east, and west by neighbouring properties and to the south by a main road, Trentham Long House is positioned centrally on the block; with almost equal parts rear and front garden. The design contends with the precarious task of maximising idyllic views whilst maintaining privacy by retreating from its boundaries. Its careful placement enhances selected vistas whilst also defining a quiet, private realm set back from the public face of the street.

kitchen / MRTN Architects

To satisfy the clients brief requirements the house needed to be able to transform from a house for a couple to a home for extended family, to be low cost to live in and maintain. It had to be low cost to construct and also easily built be the owners and their builder son. In addition to satisfying these requirements the client’s are delighted by the volume of the living space created and how with proper siting, use of glazing and thermal mass that the house is comfortable in all seasons.

interior design, fireplace / MRTN Architects

The project team consisted of the client, the builder and architect. The client’s son, Mike, is a skilled and diligent builder located in Melbourne and the project was developed in tandem with his input as to how it would be built. Mike and his father had also built the owners’ previous house so they came to the process well informed but open to the opportunities of good design. Critically however the clients were now new grandparents and were determined that Mike spend a minimum time away from his new family through a design that minimised time on site and complexity.

living room / MRTN Architects

The use of singular form of the extruded gable form makes reference to the agrarian building in the area but also responded to the limited budget for what needed to be a highly insulated and low maintenance home. Selection of the finishes and materials were determined by budget, durability and thermal performance. Through conservative use of building methodology for the majority of the building the cathedral ceiling and slate floor to the main living areas were accommodated within the limited budget.

hall / MRTN Architects

Although only about an hour north of Melbourne the climate varies quite dramatically. Located at an altitude of 700 metres the winters are distinctly cold with a mean daytime temperature of 7.6 degrees, snow is not uncommon in winter. The clients lived in the area prior to building and were well aware of the need to design a warm house and one that was not expensive to keep warm.

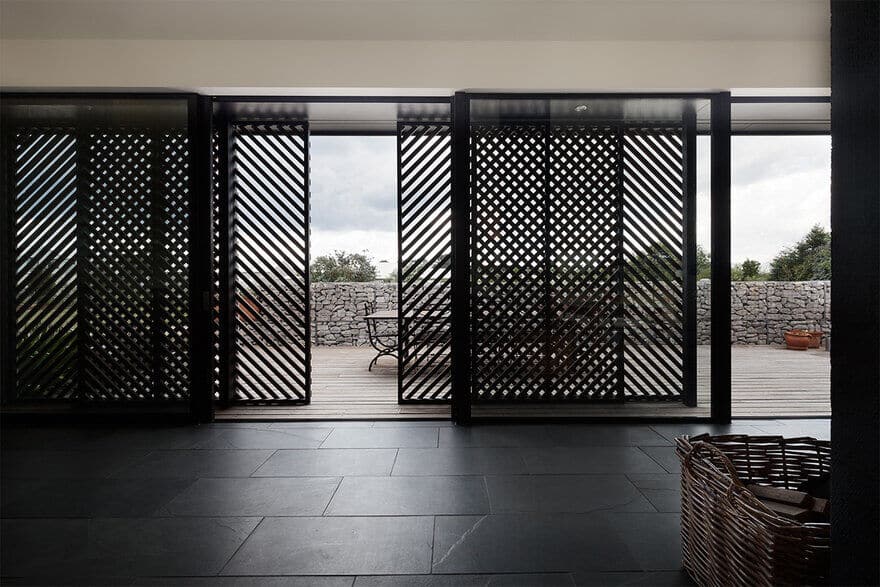

The Trentham Long house is orientated east west and although the preferable views are to the south, glazed openings along this façade were kept to a minimum. The high north facing glazing is setback off the face of the façade to provide shade from midday summer sun. In summer the glazing is shaded by custom sliding screens to help block lower morning and afternoon sun. The living spaces flooring is a stone tile on a concrete slab providing thermal mass, that the owner attests provides passive evening heating in summer and winter. Any supplementary heating required in winter is from a high efficiency fireplace. All rainwater run off from the roof is captured and stored in large water tanks providing all water required both within in the house and irrigating the garden.

terrace / MRTN Architects

bathroom / MRTN Architects

Trentham Long House / MRTN Architects

Trentham Long House / MRTN Architects

Trentham Long House / MRTN Architects
